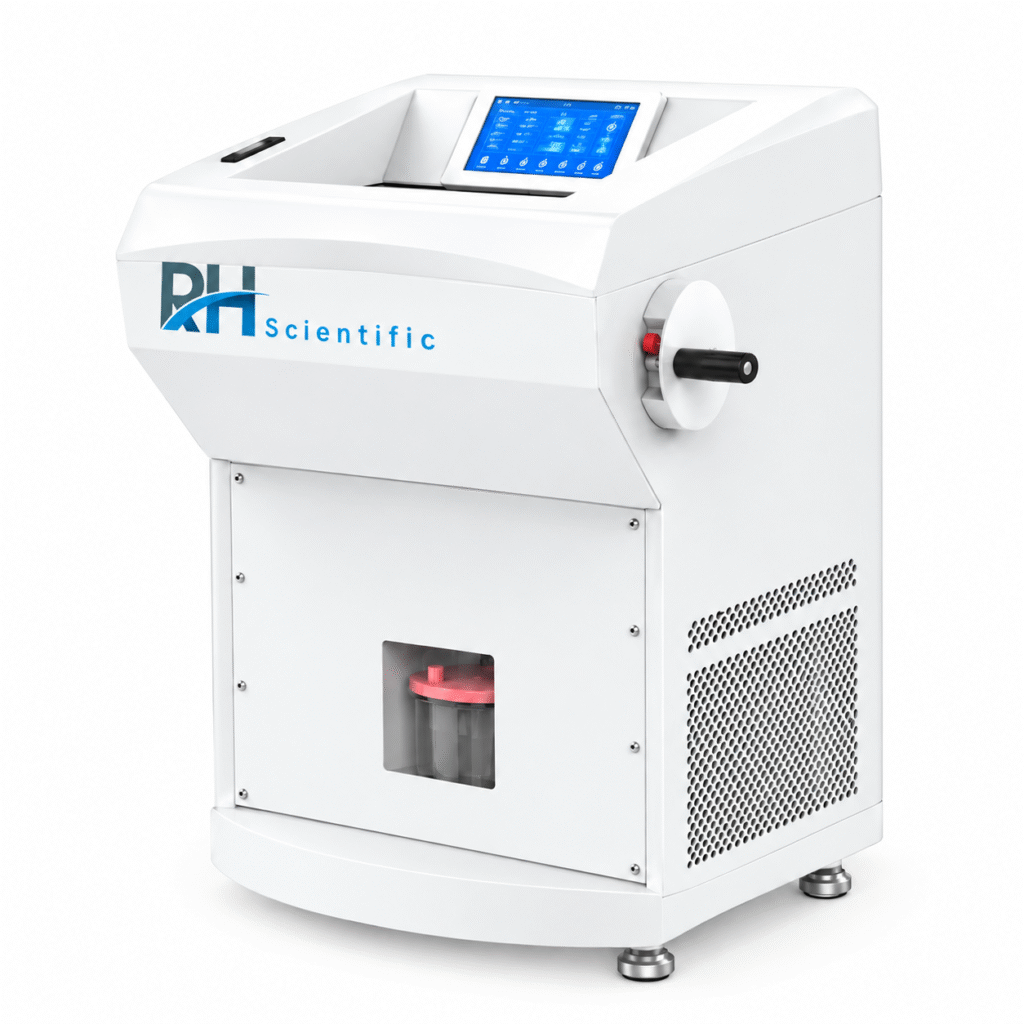

RH 5062 Cryostat Microtome
RH scientific RH5062 Cryostat Microtome features high refrigeration capacity with Dual cooling compressor, fast cooling and stable sectioning result.
High Precision Cutting: Achieves precise sections within 1-100μm range for detailed analysis.
Wide Temp. Range: Operates between -10°C to -40°C, ideal for various tissue types.
Rapid Cooling: Reaches lowest temperature in 60 minutes, ensuring quick specimen preparation.
User-Friendly Design: Easy-to-use interface and adjustable velocity for efficient operation.
Durable Construction: Made of 304SSS stainless steel, ensuring long-lasting performance.
Features.
Reliable section quality
Exquisite mechanisms
Driven by precise motors and durable guide rails, RH Scientific’s RH08 cryostat produces uniform section continuously and fears not heavy workload.
Applicable to all types of tissues
RH Scientific’s RH5062 cryostat works smoothly when sectioning different kinds of tissues, hard or soft, large or small.
Fulfill laboratory requirements

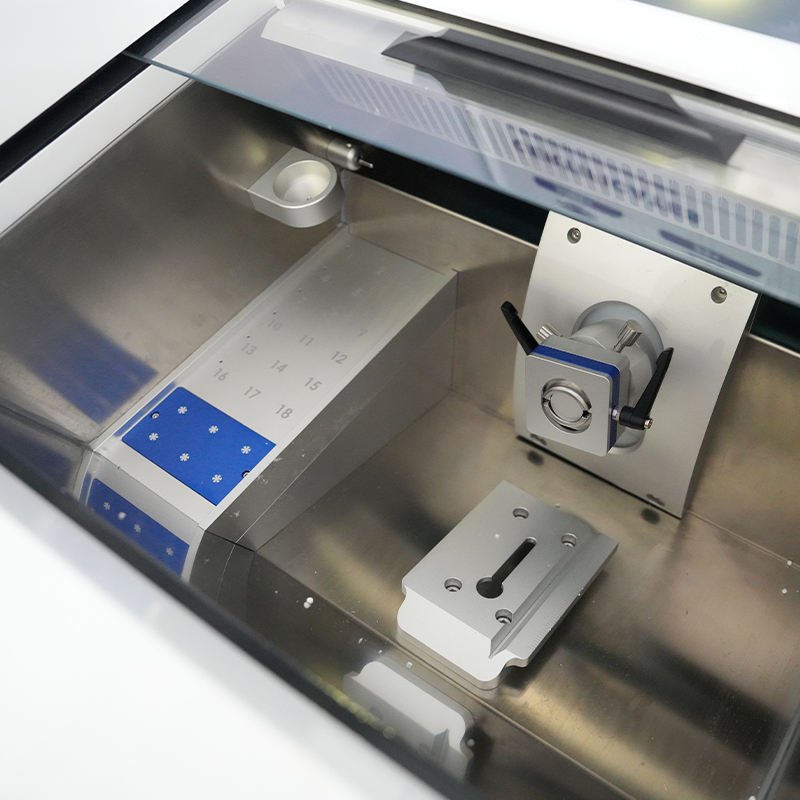

18 freezing stations and 2 Peltier elements on the large freezing shelf with clear number markings on the large freezing shelf aid specimen identification during sectioning.

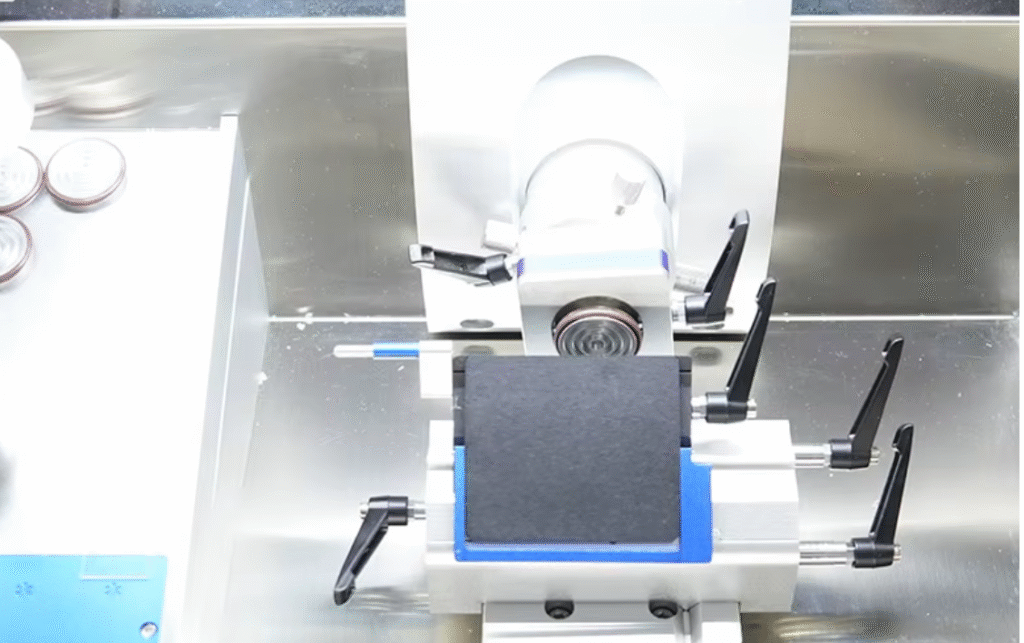

Stable blade hold
The high-quality blade holder adapts to both high and low profile blades and has an arc design to minimize blade trembling.
Relaxing user experience

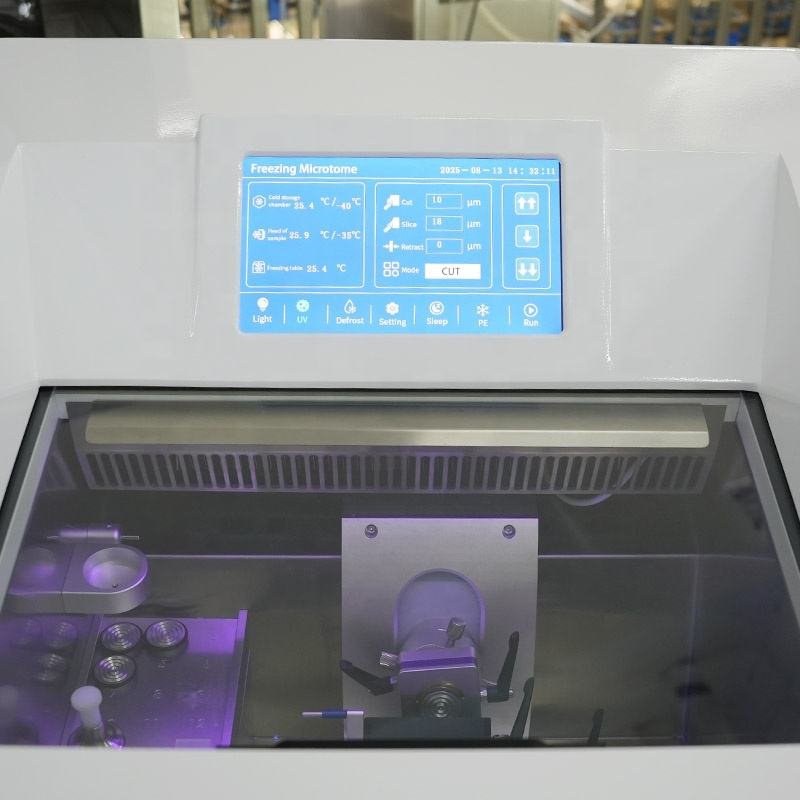

All crucial information at a glance
The large color touch screen on RH scientific’s RH5062 cryostat allows for the display of important parameters and toggles, making it easy to learn and use. A side control panel is present for convenient operation.
Hassel-free components
The heat extractor is coated with an anti-sticking layer to prevent sticking. Anti-roll guide designed with clamp can be hold at any position flexibly. The freezing shelf is frost-free.

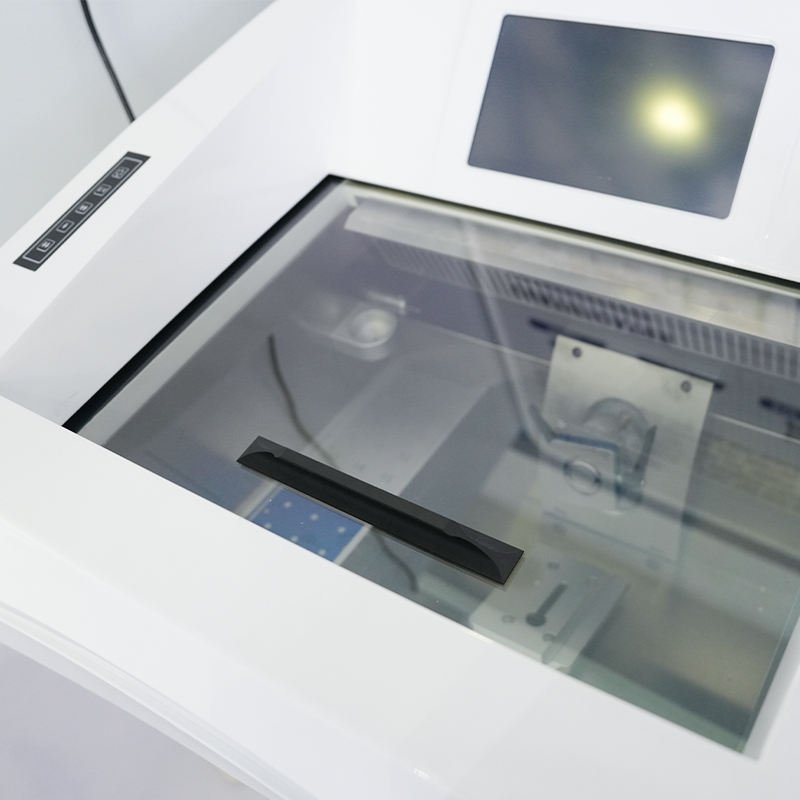

Clear sight all the time
The glass window is heated to prevent frost from building up.
Cooling fast, cooling lasts
Powerful compressor
Continuous sectioning is made possible thanks to the quality compressor and smart temperature control algorithm.
Rapid cooling peltier stations
The peltier stations can rapidly reach and stablize around -55℃ to -60℃.
Innovative design, we care about you
Schedule to fit your schedule
UV disinfection and defrosting can be activated as scheduled or manually to synchronize with the laboratory’s routine. RH Scientific’s RH5062 can be switched to sleep mode according to the preset schedule and thus helps to save energy.
Throughout drying
Extra drying function allows for rapid expulsion of moist in the chamber, saves the time from naturally drying and provides better drying results.
Elegancy
The monolithic shell of the cryostat is maintain and clean.
Specifications.
| Section thickness | 1 μm - 100 μm |
| Trimming thickness | 1 μm - 600 μm |
| Increment speed | 300 μm/s（±10%）， 900 μm/s（±10%） |
| Chamber temp. | -35℃ - +40℃ |
| Freezing plate temp | Minimum temperature -40℃（±5℃） |
| Number of freezing plates | 18 pcs |
| Retraction Range | 0-200μm |
| Chamber temp.Rnage | -10 C to -40 C |
| Speciman Head Temp.Range | -10 C to -40 C |
| Time To The Lowest Temp | 60 min |
| lowest Temp. of Refrigerating Table | -45 C |
| Rapid cooling peltier stations | Minimum temperature -60°C（±5℃） |
| Electric Coarse Feed | Rapid0.7mm/s,Slow0.35 mm/s |
| Weight with packaging | 208 ± 10kg |
| power consumption | 1500 VA |
| Supply voltage / frequency | 220 - 240 VAC, 50 HZ/110 - 127 VAC，60 Hz |
