RH 364 & 364 D SlidePro Printer
Featuring non-contact UV laser marking technology, RH scientific RH364 /RH 364D slide Pro printer offers fast, rich content and consumable-free printing. The innovative upward slide delivery system allows smooth and safe transport of slides. The printing is crisp and permanent, resists processing solvents, reducing errors and enabling traceability.
Features.
High tech printing technology.
Thanks to the non-contact UV laser marking technology, RH364 offers:
- High printing speed – as fast as — seconds per slide
- Crisp print — high resolution and great scan rate
- Minimal maintenance — non-contact printing results in little to none maintenance
- Rich content — Alphanumeric, multiple languages, symbols, 1D & 2D codes, graphics
Innovative upward slide delivery.
Gravity-driven delivery system are prone to break the slides and induce blockage.
This will never happen in G364/G364D as it implants upward slide delivery system, slides are delivered upwards and then horizontally to the printing area, eliminating possibility of slide fragmentation.
input, output.
input, selection — ONE loading hoppers, G364 ,Two loading hopper inG364D.
Large capacity — 100-slideG364 ,200 slidesG364D capacity offers relief from repetitive reloading
output, printing modes Slide storage box: 10pcs in G364,
40 slides in G364D (Print and Use)

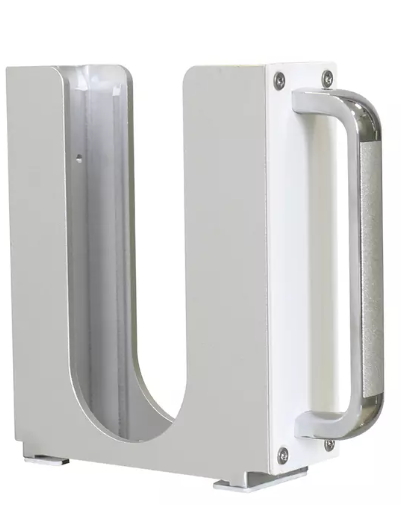

Big storage box: 100 pcs(Batch Printing)
Fit seamlessly into your current workflow

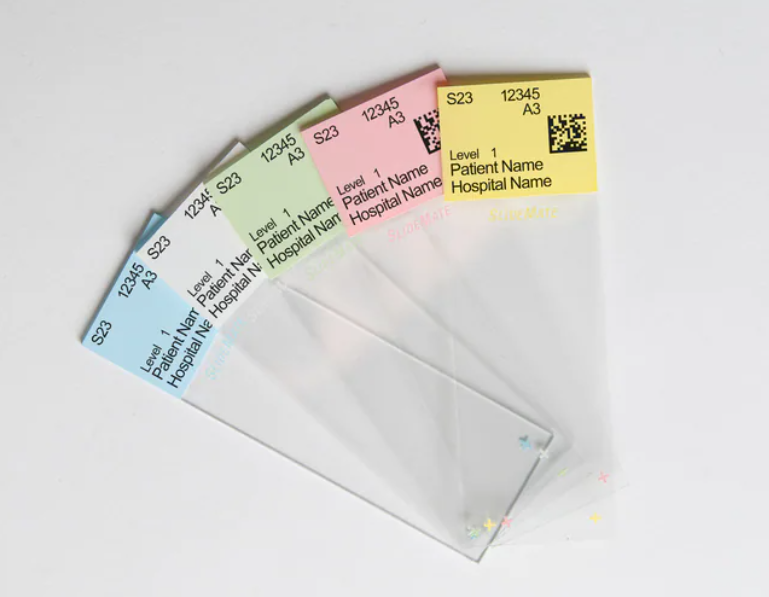

Slide compatibility — compatible with most of slides with paint coated tab
Seamless integration — send printing command from the built-in software, PC software or integrated LIS
Easy operation — windows-based system with concise UI
Easy and safe operation.
User safety— triple-layer filters in the air purification system keep odor and dust away from operator

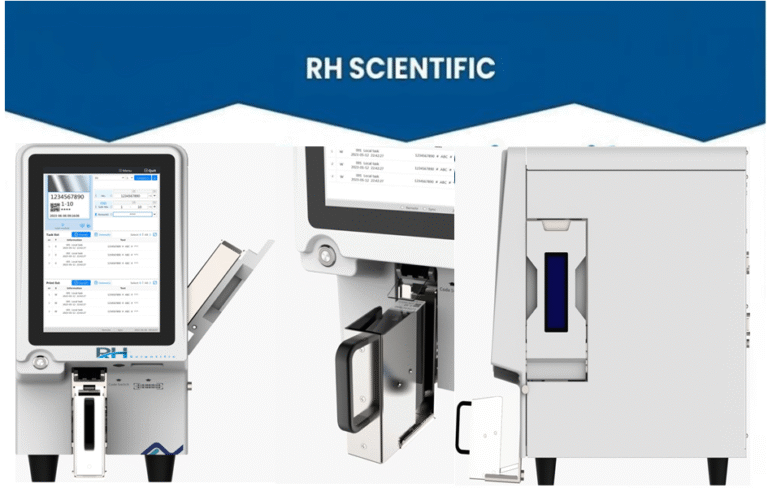

Side loading feature — convenient loading and unloading

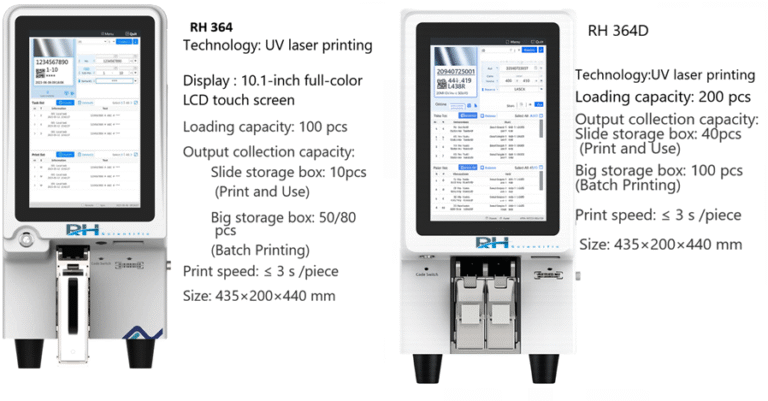

Specifications.

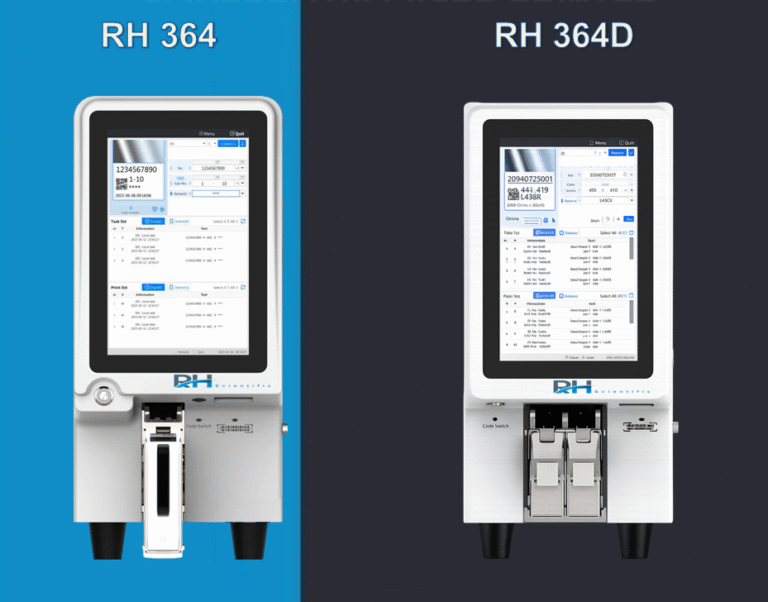

| MODEL | RH364 | RH 364D |
| Printing Technology | UV Laser Printing | UV Laser Printing |
| Printing Resolution | 600 X600 Dpi | 600 X600 Dpi |
| Print Speed | ≤ 3 seconds per slide | ≤ 3 seconds per slide |
| Loading Capacity | ≥ 100 slides (01 hopper) | ≥ 200 slides(02hopper x100slide hoppers) |
| Output Collection Capacity (Print & Use) on demand | ≥ 10 slides | ≥ 20/40 slides (02 hoppers x 20 slides |
| Output Collection Capacity (Batch Printing) | Big storage hopper: ≥ 50 / 80 pcs | Big storage hopper: ≥ 100 pcs |
| Data Transmission | USB, Ethernet, Serial Ports | USB, Ethernet, Serial Ports |
| Display | 10.1-inch Full-Color LCD Touchscreen | 10.1-inch Full-Color LCD Touchscreen |
| Barcode Scanner | Built-in; optional external barcode scanner | Built-in; optional external barcode scanner |
| Operating System | Built-in Window based (stand-alone, no external computer required) | Built-in Window based (stand-alone, no external computer required) |
| Template Design | RH inbuilt software with multiple templates option,10plus Data fields,2D Barcode,qrcode multiple format text ,fonts etc multifunction software | RH inbuilt software with multiple templates option,10plus Data fields,2D Barcode,qrcode multiple format text ,fonts etc multifunction software |
| System Compatibility | LIS / HIS / PIS / PACS | LIS / HIS / PIS / PACS |
| Support File | XMT/TXT | XMT/TXT |
| Chemical Resistance | Xylene, Alcohol, Decalcifying Fluid | Xylene, Alcohol, Decalcifying Fluid |
| Consumables | None (non-contact laser technology) | None (non-contact laser technology) |
| Air Treatment | Composite Air Treatment Function | Composite Air Treatment Function |
